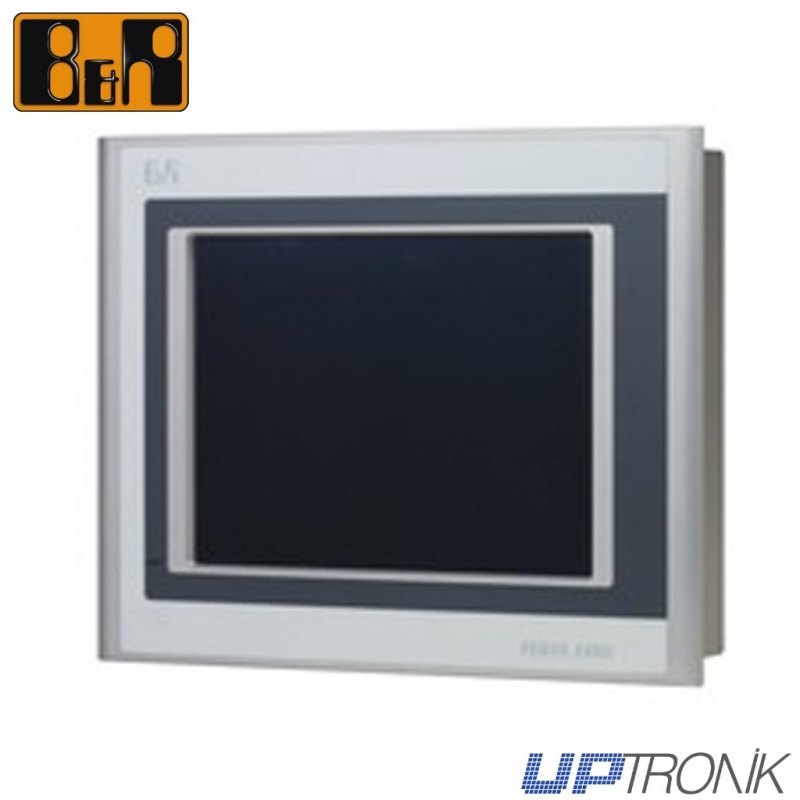

B&R 4PP420.1505-75 | Power Panel PP420 (15")

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
General information 4PP420.1505-75
LEDs Power/User, CF
B&R ID code $23BF
Battery
Type Renata 950 mAh
Lifespan 3 years 1)
Removable Yes, accessible from the outside
Backup capacitor
Buffer time 10 min
Design Lithium ion
Power button Yes
Reset button Yes
Certification types
c-UL-us Yes
CE Yes
Controllers 4PP420.1505-75
Bootloader Automation Runtime
Processor
Type Geode LX800
Clock frequency 500 MHz
L1 cache 128 kB (64 kB I-Cache / 64 kB D-Cache)
L2 cache 128 kB
Expanded command set MMX technology, 3D Now
Floating point unit (FPU) Yes
Flash 2 MB (for firmware)
Cooling Passive via heat sink
Mode/Node switches 2, 16 positions each
Watchdog MTCX
Real-time clock
Accuracy At 25°C: typ. 30 ppm (2.5 seconds) per day
Battery-buffered Yes
Power failure logic
Controllers MTCX
Buffer time 10 ms
Graphics
Controllers Geode LX800
Memory 8MB shared memory (reserved by main memory)
SRAM
Size 512 kB
Battery-buffered Yes
Memory
Type DDR SDRAM
Size 128 MB 2)
Interfaces 4PP420.1505-75
COM1
Type RS232, modem-capable, not electrically isolated
Design 9-pin DSUB plug
UART 16C550 compatible, 16-byte FIFO
Max. baud rate 115 kbit/s
CompactFlash slot 1
Type Type I
USB
Amount 2
Type USB 1.1, USB 2.0 3)
Design Type A
Transfer rate Low speed (1.5 Mbit/s), full speed (12 Mbit/s), to high speed (480 Mbit/s)
Current load Max. 500 mA per connection
Ethernet
Amount 1
Controllers Intel 82551ER
Transfer rate 10/100 Mbit/s
Max. baud rate 100 Mbit/s
Display 4PP420.1505-75
Type Color TFT
Diagonal 15" (381 mm)
Colors 16.7 million 4)
Resolution XGA, 1024 x 768 pixels
Contrast 400:1
Viewing angles
Horizontal Direction R / direction L =85°
Vertical Direction U / direction D = 85°
Background lighting
Brightness 250 cd/m²
Half-brightness time 50,000 h
Filter glass
Degree of transmission -
Coating -
Touch screen
Type Elo Accu Touch
Technology Analog, resistive
Controllers Elo, serial, 12-bit
Degree of transmission Up to 80% ±5%
Keys 4PP420.1505-75
Function keys No
Soft keys No
System keys No
Lifespan -
LED brightness -
Inserts 4PP420.1505-75
aPCI slots 1 5)
Electrical properties 4PP420.1505-75
Rated voltage 18 to 30 VDC
Rated current 1.25 A
Bleeder resistance 0 Ω
Starting current Max. 2 A
Power consumption Typ. 30 W
Electrical isolation Yes
Operating conditions 4PP420.1505-75
EN 60529 protection IP20 on the back (only with inserted CF card or IF board or with an optional aPCI cover)
IP65 / NEMA 250 type 4X, dust and sprayed water protection on the front
Environmental conditions 4PP420.1505-75
Temperature
Operation 0 to 50°C
Storage -20 to 60°C
Transport -20 to 60°C
Vibration
Operation (continuous) 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional) 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation 15 g, 11 ms
Storage 30 g, 15 ms
Transport 30 g, 15 ms
Altitude
Operation Max. 3000 m
Mechanical characteristics 4PP420.1505-75
Housing
Material Metal
Front 6)
Frame Naturally anodized aluminum
Design Gray
Membrane
Material Polyester
Light background Similar to Pantone 427CV
Dark gray border around display Similar to Pantone432CV
Gasket Flat gasket around display front
Dimensions
Width 435 mm
Height 330 mm
Depth 86 mm
Weight 6700 g

1) Typical service life (at 50% buffer operation, temperature 25°C when off, 50°C when on)
Maximum service life in 24-hour operation (no buffer) 6 years at 25°C or 5 years at 50°C
Maximum service life switched off: 2 years at 25°C or 1 year at 50°C
2) 64 MB < Rev. C0
3) The actual value depends on the operating system or driver being used.
4) The actual number of colors depends on the graphics memory, the graphics mode set and the graphics driver used.
5) For information regarding available aPCI interface modules, see B&R Systems 2005 User's Manual.
6) Depending on the process or batch, there may be visible deviations in the color and surface structure.
