Power panel PP65 (5,7")
  • Power panel PP65 (5,7")

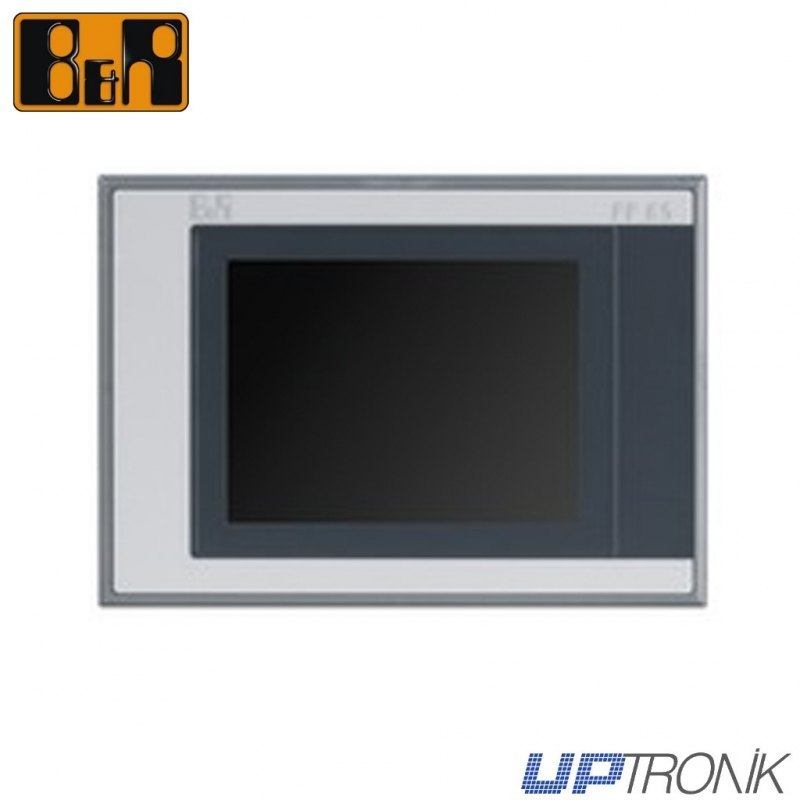

B&R 4PP065.0571-P74 | Power Panel PP65 (5.7")

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
General information 4PP065.0571-P74
B&R ID code $A964
LEDs
Amount 4
CF (CompactFlash) Orange
Status Red/green
EPL (POWERLINK) Red/green
User Green
Battery
Type Renata 950 mAh
Lifespan 4 years 1)
Removable Yes, accessible from the outside
Design Lithium ion
Backup capacitor
Buffer time 10 min
Certification types
c-UL-us Yes
CE Yes
GOST-R Yes
Controllers 4PP065.0571-P74
Boot loader, operating system
PP65 supported beginning with version Automation Runtime, A3.01
Processor
Type Geode LX800, 32-bit x86
Clock frequency 500 MHz
L1 cache 128 kB (64 kB I-Cache / 64 kB D-Cache)
L2 cache 128 kB
Expanded command set MMX technology, 3D Now
Floating point unit (FPU) Yes
Flash 4 MB (for firmware)
Cooling Passive via heat sink
Mode/Node switches 2, 16 positions each
Remanent variables 32 kB
Watchdog MTCX 2)
Real-time clock
Accuracy At 25°C: typ. 30 ppm (2.5 seconds) per day 3)
Battery-buffered Yes
Power failure logic
Controllers MTCX 4)
Buffer time 10 ms
Graphics
Controllers Geode LX800
Memory 8 MB shared memory (allocated in RAM)
Standard memory
RAM 128 MB DDR SDRAM
User RAM 200 kB SRAM
PP65 Compact IF slot 1
Interfaces 4PP065.0571-P74
CompactFlash slot 1
Amount 1
Type Type I
Design Primary IDE device
USB
Amount 2
Type USB 1.1, USB 2.0
Design Type A
Transfer rate Low speed (1.5 Mbit/s), full speed (12 Mbit/s), to high speed (480 Mbit/s)
Current load Max. 500 mA per connection
Ethernet
Amount 1
Controllers Intel 82551ER
Design Shielded RJ45 port (10/100 Base-T)
Transfer rate 10/100 Mbit/s
Max. baud rate 100 Mbit/s
Cables S/STP (category 5)
Status LEDs Link/Activity
Product ID 4PP065.0571-P74
POWERLINK
Amount 1
Type Type 4 5)
Design Shielded RJ45 port
Fieldbus POWERLINK V1/V2
Transmission 100 Base-T (ANSI/IEEE 802.3)
Transfer rate 100 Mbit/s
Cable length Max. 100 m between two stations (segment length)
Status LEDs Link/Activity
Display 4PP065.0571-P74
Type Color TFT
Diagonal 5.7" (144 mm)
Colors 262,144
Resolution QVGA, 320 x 240 pixels
Contrast 350:1
Viewing angles
Horizontal Direction R / direction L =60°
Vertical Direction U = 65°/ direction D = 50°
Background lighting
Brightness 500 cd/m²
Half-brightness time 50,000 h
Touch screen
Technology Analog, resistive
Controllers B&R, 12-bit
Degree of transmission 70% ±10%
Screen rotation Yes (see chapter 4 "Commissioning", section "Screen rotation" on page 131)
Electrical properties 4PP065.0571-P74
Rated voltage 24 VDC ±25%
Rated current 0.45 A
Starting current Max. 2.8 A
Power consumption Typ. 10 W
Electrical isolation No
Operating conditions 4PP065.0571-P74
Installation at altitudes above sea level
Maximum 3000 m
EN 60529 protection IP20 on the back (only with CF card inserted)
IP65 / NEMA 250 type 4X, dust and sprayed water protection on the front
Environmental conditions 4PP065.0571-P74
Temperature
Operation 0 to 50°C
Storage -20 to 70°C
Transport -20 to 70°C
Relative humidity
Operation 10 to 90%, non-condensing
Storage T ≤ 40°C: 5 to 90%, non-condensing
T > 40°C: < 90%, non-condensing
Vibration
Operation (continuous) 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional) 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation 15 g, 11 ms
Storage 30 g, 15 ms
Transport 30 g, 15 ms
Mechanical characteristics 4PP065.0571-P74
Housing
Material Polyester
Front Multi-layered membrane
Dimensions
Width 203 mm
Height 145 mm
Depth 56.5 mm
Weight 6) 0.75 kg

1) Typical service life (at 50% buffer operation, 25°C when device off, 50°C when device on)
Maximum service life in 24h operation (no buffer): 6 years at 25°C, 5 years at 50°C
Maximum service life when device switched off: 2 years at 25°C, 1 year at 50°C
2) Maintenance Controller Extended
3) At max. specified ambient temperature: typ. 50 ppm (4s); worst case 100 ppm (8s)
4) Maintenance Controller Extended
5) See the online help documentation in Automation Studio under "Communication, POWERLINK, General information, Hardware - IF / LS".
6) Weight includes fasteners and battery (46.5 g) but not an interface module
4PP0650571P74

Descargas

PP65

Descargas (0)
