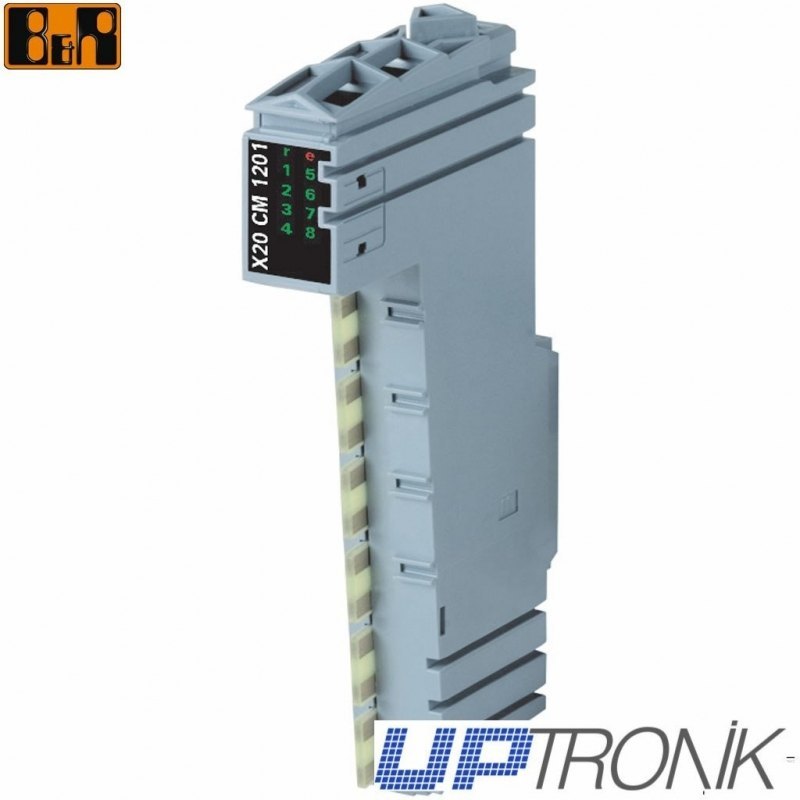

B&R X20CM1201

X20 módulo de combinación,
1 AB encoder incremental de 24 V,
4 entradas digitales de 24 V,
4 canales, 24 V puede ser configurado
como entrada o salida,
la lógica del controlador digital flexible

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20CM1201
I/O module 1 AB incremental encoder, 24 V, 4 digital inputs, 4 channels can be configured as inputs or outputs
General information X20CM1201
Input voltage 24 VDC -15% / +20%
B&R ID code 0x21EF
Status indicators I/O function per channel, operating state, module status
Diagnostics
Module run/error Yes, with status LED and software status
Outputs Yes, with status LED and software status (output status)
Power consumption
Bus 0.01 W
Internal I/O 1.5 W
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
Channel - Bus Yes
Channel - Channel No
Type of signal lines Shielded cables should be used for all signal lines.
Certification types
c-UL-us Yes
CE Yes
GOST-R Yes
AB incremental encoders X20CM1201
Amount 1
Encoder inputs 24 V, asymmetrical
Counter size 32-bit
Input frequency Max. 100 kHz
Evaluation 4x
Encoder supply Module-internal, max. 600 mA
Overload behavior of the encoder supply Short circuit protection, overload protection
Digital inputs X20CM1201
Amount 4 + 4 additional channels, can be configured as input or output
Rated voltage 24 VDC
Input voltage 24 VDC -15% / +20%
Input current at 24 VDC Approx. 1.3 mA
Input filter
Hardware ≤ 2 μs
Software -
Connection type 1-wire connection
Input circuit Sink
Input resistance 18.4 kΩ
Switching threshold
LOW <5 VDC
HIGH >15 VDC
Isolation voltage between channel and bus 500 Veff
Digital outputs X20CM1201
Amount Up to 4, configuration as input or output takes place using software
Rated voltage 24 VDC
Switching voltage 24 VDC -15% / +20%
Rated output current 0.1 A
Total current 0.4 A
Connection type 1-wire connection
Output circuit Sink or source
Output protection Thermal cutoff for overcurrent and short circuit, integrated protection for switching inductances
Design Push / Pull / Push-Pull
Actuator supply Module-internal, max. 600 mA
Diagnostics status Output monitoring
Leakage current when switched off Max. 25 µA
Residual voltage <0.9 V @ rated current 0.1 A
Short circuit peak current <10 A
Switching on after overload or short circuit cutoff ca. 10 ms (depends on the module temperature)
Switching delay
0 --> 1 <2 µs
1 --> 0 <2 µs
Switching frequency
Resistive load Max. 24 kHz
Braking voltage when switching off inductive loads Switching voltage + 0.6 VDC
Isolation voltage between channel and bus 500 Veff
Operating conditions X20CM1201
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No derating
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20CM1201
Temperature
Operation
Horizontal installation 0 to 55°C
Vertical installation 0 to 50°C
Storage -25 to 70°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 95%
Storage 5 to 95%
Transport 5 to 95%
Mechanical characteristics X20CM1201
Note Order 1x X20TB12 terminal block separately
Order 1x X20BM11 bus module separately
Spacing 12.5+0.2 mm

X20CM1201
