Función especial CM0985
  • Función especial CM0985

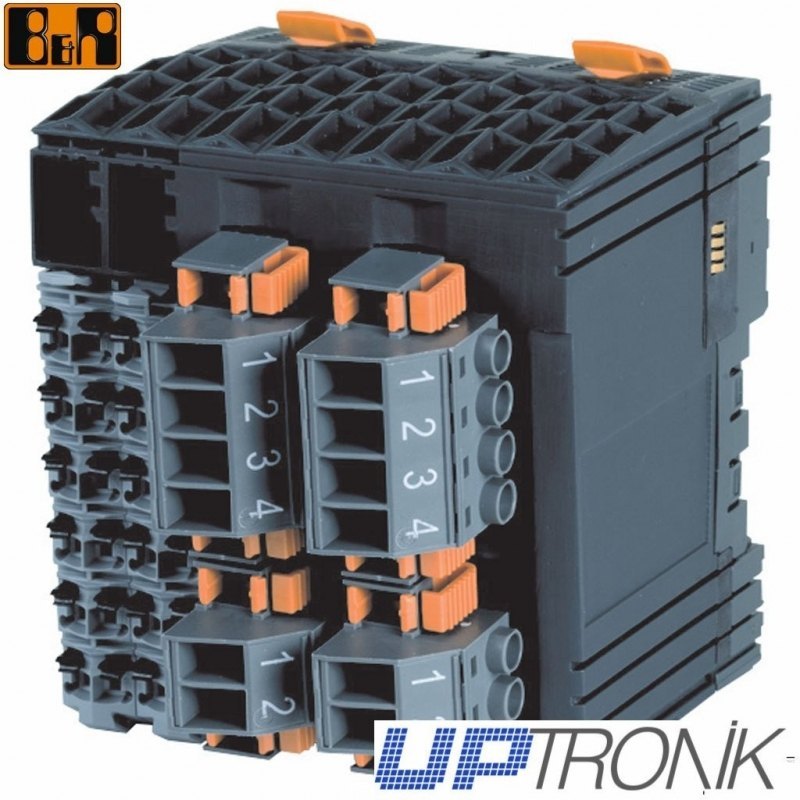

B&R X20CM0985 | Módulo combinado digital y analógico

X20 digitales y módulo mixto analógico,
Multi-transformador de medida /
Módulo de sincronización,
5 salidas digitales, 24 VDC,
0,5 A, la fuente,
1 relé 1 A cambio de formato de contacto,
8 entradas analógicas ± 480 V / 120 V,
16-bits convertidor resolución,
3 entradas analógicas ± 5 A / 1 A,
16-bit Resolución del conversor


Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20CM0985
I/O module X20 energy measurement and synchronization module
General information X20CM0985
Status indicators Channel status, operating status, module status
Diagnostics
Module run/error Yes, with status LED and software status
Analog inputs Yes, with status LED (measurement range of analog inputs)
Digital outputs Yes, with status LED and software status
Power consumption
Bus 1.4 W
Internal I/O 4 W
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
Bus - I/O supply Yes
Input/output - Bus Yes
Digital outputs - analog inputs Yes
Certification types
c-UL-us Yes
CE Yes
GOST-R Yes
Digital outputs X20CM0985
Amount 5
Rated voltage 24 VDC
Rated output current 0.1 A
Total current 0.5 A
Connection type 1-line connection
Output circuit Source
Output protection Thermal cutoff for overcurrent or short circuit
Relay outputs X20CM0985
Amount 1
Design Relay / Change-over
Rated voltage 30 VDC / 230 VAC
Nominal frequency DC / 45 - 63 Hz
Rated output current 1 A at 30 VDC / 1 A at 230 VAC
Switching capacity
Min. 10 mA / 5 VDC
Max. 30 W / 230 VAC
Actuator supply External
Analog inputs - voltage X20CM0985
Channels 8
Input ±120 VAC / ±480 VAC
Input type Single ended
Digital converter resolution ±15-bit
Conversion time
50 Hz 20 ms
60 Hz 16.67 ms
Output format UINT
Input impedance in signal range Approx. 3 MΩ
Maximum error at 25°C
Gain 0.09% 1)
Offset 0.03% 2)
Input protection Overvoltage protection
Analog inputs - current X20CM0985
Channels 3
Input ±1 A / ±5 A
Input type Isolated current transformer according to the compensation principle with a magnetic sensor,
for connecting an external transformer
Digital converter resolution ±15-bit
Conversion time
50 Hz 20 ms
60 Hz 16.67 ms
Output format UINT
Maximum error at 25°C
Gain 0.2% 3)
Offset 0.05% 4)
Thermal overcurrent 15 x IRated for 0.2 s 5)
Monitored overcurrent 4 x IRated 6)
Input impedance 7)
Measurement range 1 A Max. 30 mΩ
Measurement range 5 A Max. 10 mΩ
Operating conditions X20CM0985
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No derating
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20CM0985
Temperature
Operation
Horizontal installation 0 to 55°C
Vertical installation 0 to 50°C
Storage -25 to 70°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 95%
Storage 5 to 95%
Transport 5 to 95%
Mechanical characteristics X20CM0985
Note Order 2x X20TB12 terminal block separately
Order 2x TB3102 and 2x TB3104 screw clamp separately
Spacing 87.5+0.2 mm

1) Based on the current measurement value
2) Refers to the measurement range 240 VAC / 960 VAC.
3) Based on the current measurement value
4) Refers to the measurement range 2 A / 10 A.
5) Refers to the measurement range ±1 A / ±5 A.
6) Refers to the measurement range ±1 A / ±5 A.
7) Including current transformer, circuit path and X20TB12 terminal block (5 mΩ)
X20CM0985
