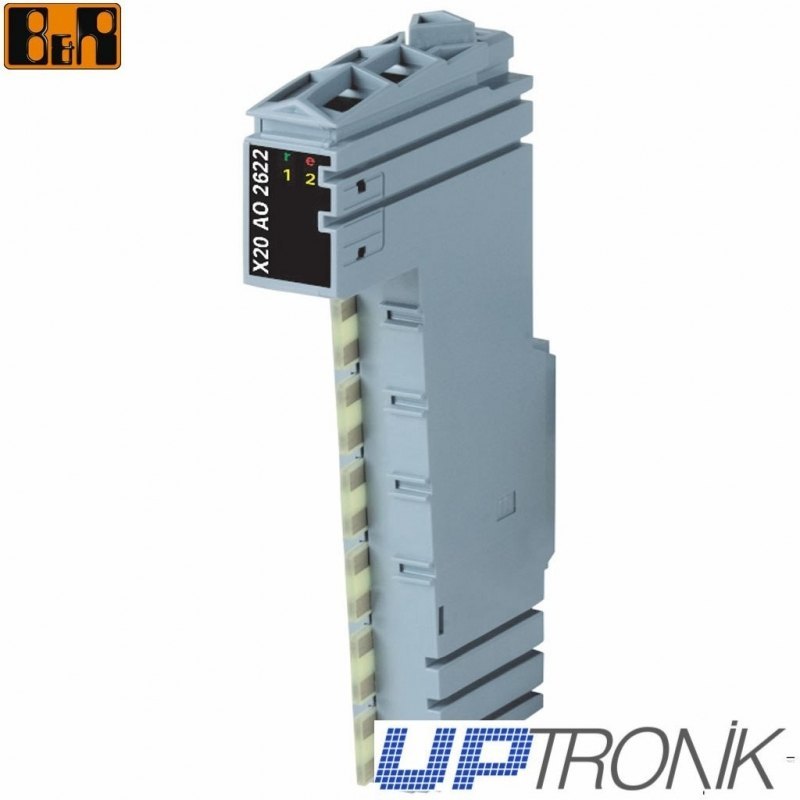

B&R X20AO2622 | Sal. analogicas

X20 módulo de salida analógica,
2 salidas,
± 10 V / 0 a 20 mA,
Resolución de 12 bits

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20AO2622
I/O module 2 analog outputs, ±10 V or 0 to 20 mA
General information X20AO2622
B&R ID code 0x1BA2
Status indicators I/O function per channel, operating state, module status
Diagnostics
Module run/error Yes, with status LED and software status
Channel type Yes, with software status
Power consumption
Bus 0.01 W
Internal I/O 1.1 W
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
Channel - Bus Yes
Channel - Channel No
Certification types
Inspection certificate 1) Yes
c-UL-us Yes
CE Yes
GOST-R Yes
Analog outputs X20AO2622
Output ±10 V or 0 to 20 mA, using different connection terminal points
Digital converter resolution 12-bit
Conversion time 200 µs for all outputs
Power on/off behavior Internal enable relay for boot procedure and errors
Max. error at 25°C
Gain 0.15% 2)
Offset 0.05% 3)
Output protection Short circuit protection
Output filter First-order low pass / cut-off frequency 10 kHz
Settling time for output changes over entire range 1 ms
Isolation voltage between channel and bus 500 Veff
Non-linearity <0.007% 4)
Short circuit protection Current limitation ±40 mA
Max. gain drift 0.02%/°C 5)
Max. offset drift 0.032%/°C 6)
Output format
Voltage INT $8001 - $7FFF / 1 LSB = $0010 = 4.882 mV
Current INT $0000 - $7FFF / 1 LSB = $0010 = 9.766 µA
Load per channel
Voltage Max. ±10 mA, load ≥ 1kΩ
Current Max load 500 Ω
Error caused by Load Change
Voltage Max. 0.02%, from 10 MΩ → 1 kΩ, resistive
Current Max. 0.5%, from 1 Ω → 600 Ω, resistive
Operating conditions X20AO2622
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No derating
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20AO2622
Temperature
Operation
Horizontal installation 0 to 55°C
Vertical installation 0 to 50°C
Storage -25 to 70°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 95%
Storage 5 to 95%
Transport 5 to 95%
Mechanical characteristics X20AO2622
Note Order 1x X20TB06 or X20TB12 terminal block separately
Order 1x X20BM11 bus module separately
Spacing 12.5+0.2 mm

1) Operating principle checked: Shutdown initiated by external safety switching device
2) Based on the current output value
3) Based on the entire output range
4) Based on the output range
5) Based on the current output value
6) Based on the entire output range
