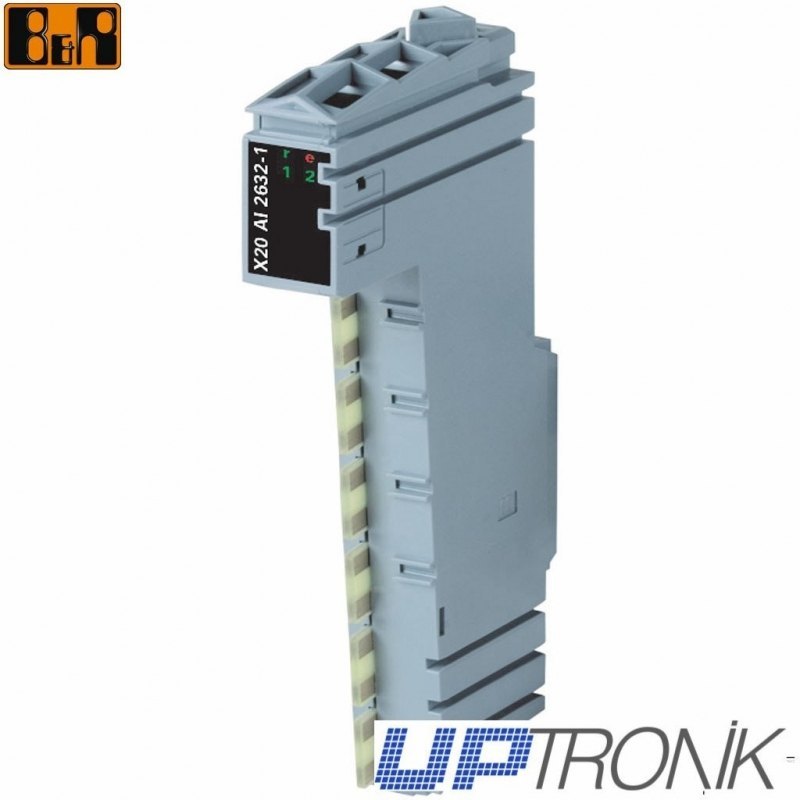

B&R X20AI2632 | Ent. analogicas

X20 módulo de entrada analógica,
2 entradas,
± 10 V / 0 a 20 mA,
16-bits de resolución,
filtro de entrada configurable,
las funciones del osciloscopio

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20AI2632
I/O module 2 analog inputs, ±10 V or 0 to 20 mA
General information X20AI2632
B&R ID code 0x1BA0
Status indicators I/O function per channel, operating state, module status
Diagnostics
Module run/error Yes, with status LED and software status
Inputs Yes, with status LED and software status
Channel type Yes, with software status
Power consumption
Bus 0.01 W
Internal I/O 1.2 W 1)
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
Channel - Bus Yes
Channel - Channel No
Certification types
CE Yes
c-UL-us Yes
GOST-R Yes
Analog input modules X20AI2632
Input ±10 V or 0 to 20 mA, using different connection terminal points
Input type Differential input
Digital converter resolution
Voltage ±15-bit
Current 15-bit
Conversion time 50 µs for all inputs
Output format UINT
Voltage INT $8001 - $7FFF / 1 LSB = $0001 = 305.176 µV
Current INT $0000 - $7FFF / 1 LSB = $0001 = 610.352 nA
Input impedance in signal range
Voltage 20 MΩ
Current -
Load
Voltage -
Current <400 Ω
Max. error at 25°C
Voltage
Gain 0.08% 2)
Offset 0.01% 3)
Current
Gain 0.08% 4)
Offset 0.02% 5)
Input protection Protection against wiring with supply voltage
Permitted input signal
Voltage Max. ±30 V
Current Max. ±50 mA
Output of the digital value during overload
Below lower limit
Voltage $8001
Current $0000
Above upper limit
Voltage $7FFF
Current $7FFF
Conversion procedure SAR
Input filter Hardware - 3rd order low pass / cut-off frequency 10 kHz
Max. gain drift
Voltage 0.01%/°C 6)
Current 0.01%/°C 7)
Max. offset drift
Voltage 0.001%/°C 8)
Current 0.002%/°C 9)
Common-mode rejection
DC 70 dB
50 Hz 70 dB
Synchronized zone ±12 V
Cross-talk between channels <-70 dB
Non-linearity
Voltage <0.01% 10)
Current <0.015% 11)
Isolation voltage between channel and bus 500 Veff
Operating conditions X20AI2632
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m keine Einschränkung
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20AI2632
Temperature
Operation
Horizontal installation -25°C bis +60°C
Vertical installation -25°C bis +50°C
Derating -
Storage -40°C bis +85°C
Transport -40°C bis +85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Mechanical characteristics X20AI2632
Note Order 1x X20TB06 or X20TB12 terminal block separately
Order 1x X20BM11 bus module separately
Spacing 12.5+0.2 mm

1) To reduce power dissipation, B&R recommends bridging unused inputs on the terminals or configuring them as current signals.
2) Based on the current measurement value
3) Based on the 20 V measurement range
4) Based on the current measurement value
5) Based on the 20 mA measurement range
6) Based on the current measurement value
7) Based on the current measurement value
8) Based on the 20 V measurement range
9) Based on the 20 mA measurement range
10) Based on the 20 V measurement range
11) Based on the 20 mA measurement range
