CPU Celeron CP3485
  • CPU Celeron CP3485

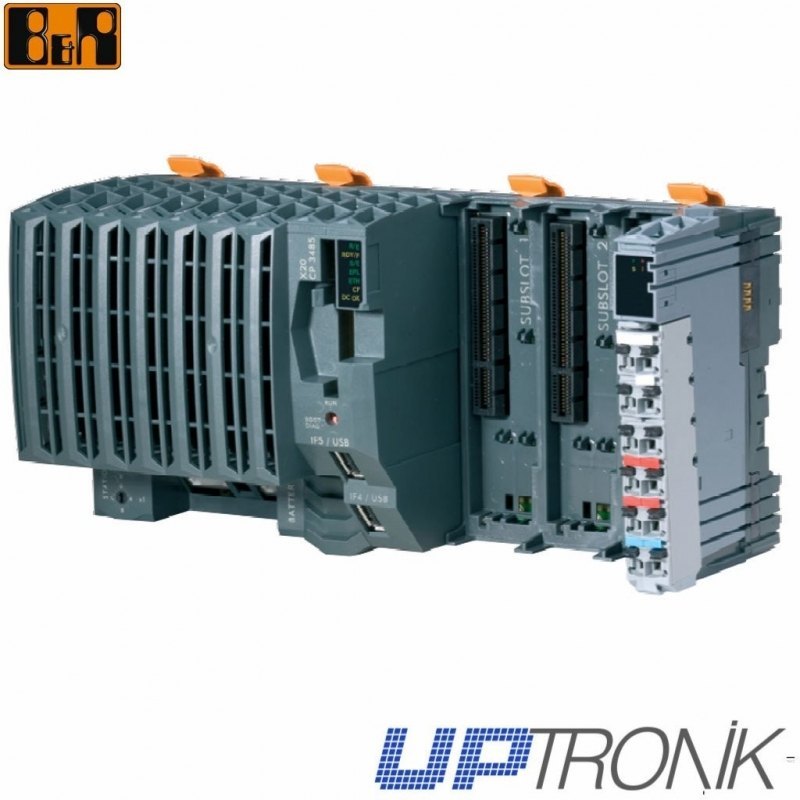

B&R X20CP3485 | CPU Celeron

La CPU B&R CP3485  tiene una conexión POWERLINK para la comunicación en tiempo real.
Además, hay hasta tres ranuras de usos múltiples para módulos de interfaz adicionales.

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20CP3485
Interfaces 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
System module CPU
General information X20CP3485
Cooling Fan-free
Power consumption (Without memory card, interface module or USB) 10.5 W
B&R ID code 0x2165
Status indicators CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics
Battery Yes, with status LED and software status
CPU function Yes, with status LED
CompactFlash Yes, with status LED
Ethernet Yes, with status LED
POWERLINK Yes, with status LED
Overtemperature Yes, with status LED
Fan diagnostics -
ACOPOS capability Yes
Visual Components capability Yes
Internal power consumption of the X2X Link and I/O supply 1)
Bus 1.42 W
Internal I/O 0.6 W
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
IF1 - IF2 Yes
IF1 - IF3 Yes
IF1 - IF4 No
IF1 - IF5 No
IF1 - IF6 Yes
IF2 - IF4 Yes
IF2 - IF5 Yes
IF3 - IF4 Yes
IF3 - IF5 Yes
IF4 - IF5 No
IF4 - IF6 Yes
IF5 - IF6 Yes
PLC - IF1 No
PLC - IF2 Yes
PLC - IF3 Yes
PLC - IF4 No
PLC - IF5 No
PLC - IF6 Yes
Certification types
CE Yes
c-UL-us Yes
GOST-R Yes
CPU and X2X Link supply X20CP3485
Input voltage 24 VDC -15% / +20%
Input current Max. 2.2 A
Fuse Integrated, cannot be replaced
Reverse polarity protection Yes
X2X Link supply output X20CP3485
Rated output power 7.0 W
Parallel operation Yes 2)
Redundant operation Yes
Input I/O supply X20CP3485
Input voltage 24 VDC -15% / +20%
Fuse Erforderliche Vorsicherung max. T 10 A
Output I/O supply X20CP3485
Rated output voltage 24 VDC
Permitted contact load 10.0 A
General supply X20CP3485
Status indicators Overload, operating status, module status, RS232 data transfer
Diagnostics
RS232 data transfer Yes, with status LED
Module run/error Yes, with status LED and software status
Overload Yes, with status LED and software status
Electrical isolation
I/O feed - I/O supply No
CPU/X2X Link feed - CPU/X2X Link supply Yes
Controllers X20CP3485
CompactFlash slot 1
Real-time clock Nonvolatile memory, resolution 1 second
FPU Yes
Processor
Type Celeron 400
L2 cache 256 kB
L1 cache for data and program code 2x 16 kB
Integrated I/O processor Processes I/O data points in the background
Modular interface slots 3
Remanent variables 256 kB
Fastest task class cycle time 400 µs
Typical instruction cycle time 0.015 µs
Data buffering
Battery monitoring Yes
Lithium battery At least 3 years
Standard memory
RAM 32 MB SDRAM
User RAM 1 MB SRAM
Interfaces X20CP3485
Interface IF1
Type RS232
Design Contact via 12-pin terminal block TB12
Transfer rate Max. 115.2 kbit/s
Interface IF2
Type Ethernet
Design Shielded RJ45 port
Cable length Max. 100 m between two stations (segment length)
Transfer rate 10/100 Mbit/s
Interface IF3
Fieldbus POWERLINK V1/V2
Type 100 Base-T (ANSI/IEEE 802.3)
Design Shielded RJ45 port
Cable length Max. 100 m between two stations (segment length)
Transfer rate 100 Mbit/s
Interface IF4
Type USB 1.1
Amount 1
Design Type A
Interface IF5
Type USB 1.1
Amount 1
Design Type A
IF6 interface
Type X2X Link master
Amount 1
Operating conditions X20CP3485
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No derating
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20CP3485
Temperature
Operation
Horizontal installation 0 to 55°C
Vertical installation 0 to 50°C
Storage -25 to 70°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 95%
Storage 5 to 95%
Transport 5 to 95%
Mechanical characteristics X20CP3485
Note Order application memory (CompactFlash) separately
Backup battery included in delivery
X20 locking plate (right) included in delivery
X20 terminal block (12-pin) included in delivery
Interface module slot covers included in the delivery
Dimensions
Width 200 mm
Height 99 mm
Depth 85 mm
