CPU Compacta CP0292
  • CPU Compacta CP0292

B&R X20CP0292 | CPU Compacta

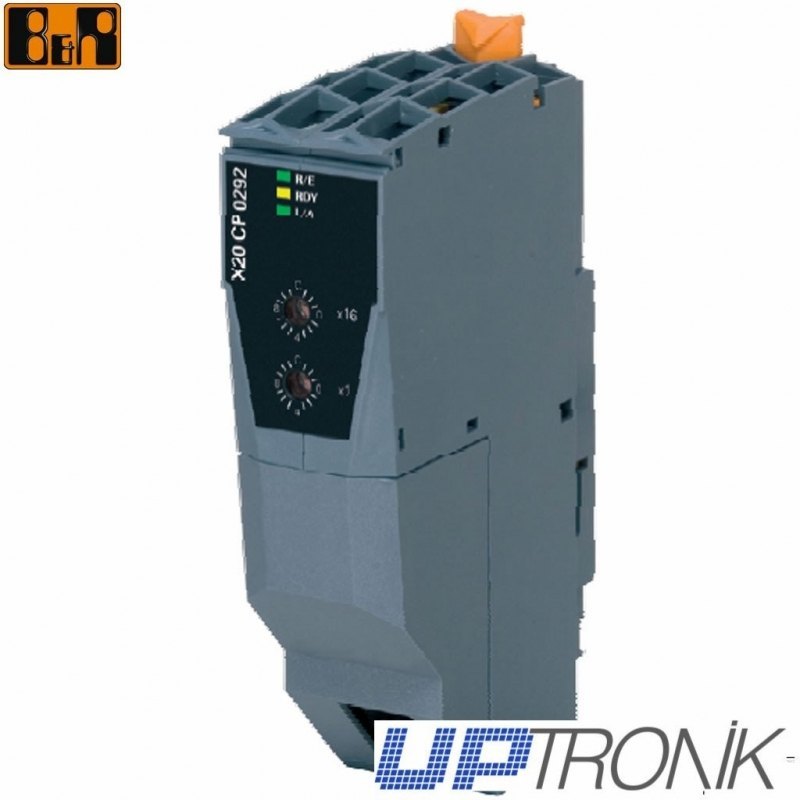

El X20CP0292 B&R es el más potente de las CPUs compactas X20. Equipado con el μP 25 incorporado y memoria adicional, está predestinado para las aplicaciones básicas de la impulsión y de la visualización.

La CPU es compatible con la red debido a una interfaz Ethernet integrada.

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20CP0292
Interfaces 1x Ethernet on-board
System module CPU
General information X20CP0292
B&R ID code 0x22A6
Status indicators CPU function, Ethernet
Diagnostics
CPU function Yes, with status LED
Ethernet Yes, with status LED
Overtemperature Yes, with software status
Power consumption 3.0 W
Temperature sensor Yes
ACOPOS capability Yes
Visual Components capability Yes
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
PLC - IF2 Yes
Certification types
c-UL-us Yes
CE Yes
GOST-R Yes
Controllers X20CP0292
Real-time clock 1) Yes, resolution 1 s
Processor
Type Embedded µP 25
Integrated I/O processor Processes I/O data points in the background
Backup battery No
Fastest task class cycle time 2 ms
Typical instruction cycle time 0.5 µs
Permanent variables
Buffer duration >10 years
Memory 2.75 kB FRAM 2)
Standard memory
User PROM 3 MB FlashPROM
User RAM 750 kB SRAM 3)
Interfaces X20CP0292
Interface IF2
Type Ethernet
Design Shielded RJ45 port
Cable length Max. 100 m between two stations (segment length)
Transfer rate 100 Mbit/s
Additional interfaces
X20BB22 Compact CPU base module with integrated RS232 interface
X20BB27 Compact CPU base module with integrated RS232 and CAN interfaces
Operating conditions X20CP0292
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No derating
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20CP0292
Temperature
Operation
Horizontal installation 0 to 55°C
Vertical installation 0 to 50°C
Storage -25 to 70°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 95%
Storage 5 to 95%
Transport 5 to 95%
Mechanical characteristics X20CP0292
Note Order 1x X20TB12 terminal block separately
Order supply module 1x X20PS9500 or X20PS9502 separately
Order Compact CPU base 1x X20BB22 or X20BB27 separately
Spacing 4) 37.5+0.2 mm

1) The real-time clock is buffered for approx. 1000 hours by a gold foil capacitor. The gold foil capacitor is completely loaded after 18 continuous hours of operation.
2) This FRAM stores its contents ferroelectrically. Therefore, no buffer battery is needed.
3) Not buffered.
4) Spacing is based on the width of the Compact CPU base X20BB22 or X20BB27. An X20PS9500 or X20PS9502 supply module is also always required for the CPU.
X20CP0292
