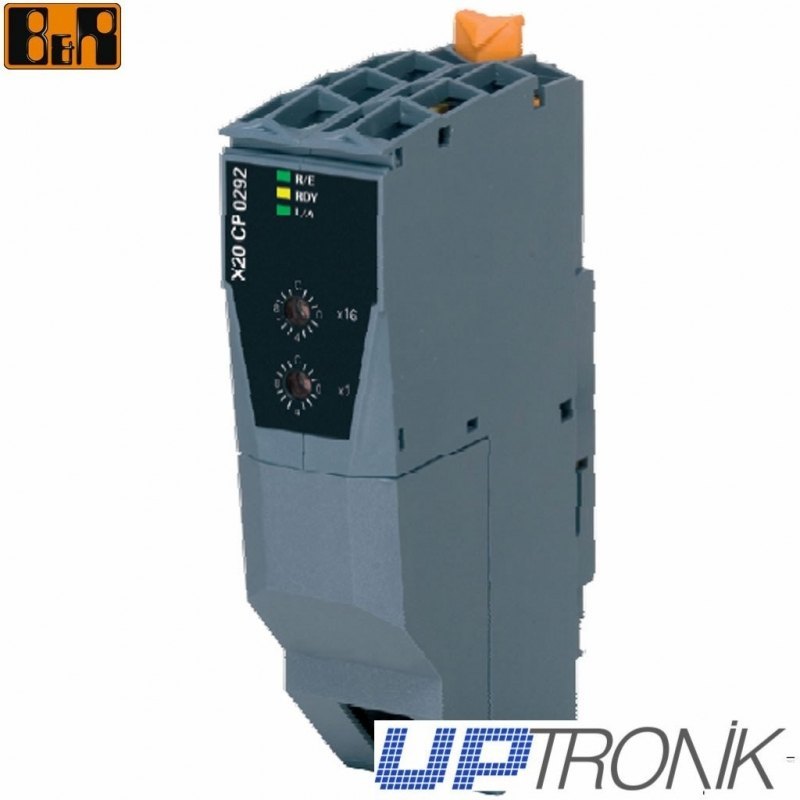

B&R X20CP0291 | CPU Compacta

X20CP0291 B&R CPU compacta, μP 16, SRK de 100 kB, FlashPROM de 1 MB, compatibilidad con RS232, bus CAN según la base compacta de la CPU, 1 interfaz Ethernet 100 Base-T, base de bus de pedido, módulo de alimentación y bloque de terminales por separado.

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20CP0291
Interfaces 1x Ethernet on-board
System module CPU
General information X20CP0291
B&R ID code 0x22A4
Status indicators CPU function, Ethernet
Diagnostics
CPU function Yes, with status LED
Ethernet Yes, with status LED
Power consumption 2.7 W
Temperature sensor No
ACOPOS capability Limited (User PROM)
Visual Components capability Limited (User PROM)
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
PLC - IF2 Yes
Certification types
c-UL-us Yes
CE Yes
GOST-R Yes
Controllers X20CP0291
Real-time clock 1) Yes, resolution 1 s
Processor
Type Embedded µP 16
Integrated I/O processor Processes I/O data points in the background
Backup battery No
Fastest task class cycle time 4 ms
Typical instruction cycle time 0.8 µs
Permanent variables
Buffer duration >10 years
Memory 2.75 kB FRAM 2)
Standard memory
User PROM 1 MB FlashPROM
User RAM 100 kB SRAM 3)
Interfaces X20CP0291
Interface IF2
Type Ethernet
Design Shielded RJ45 port
Cable length Max. 100 m between two stations (segment length)
Transfer rate 100 Mbit/s
Additional interfaces
X20BB22 Compact CPU base module with integrated RS232 interface
X20BB27 Compact CPU base module with integrated RS232 and CAN interfaces
Operating conditions X20CP0291
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No derating
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20CP0291
Temperature
Operation
Horizontal installation 0 to 55°C
Vertical installation 0 to 50°C
Storage -25 to 70°C
Transport -25 to 70°C
Relative humidity
Operation 5 to 95%
Storage 5 to 95%
Transport 5 to 95%
Mechanical characteristics X20CP0291
Note Order 1x X20TB12 terminal block separately
Order supply module 1x X20PS9500 or X20PS9502 separately
Order Compact CPU base 1x X20BB22 or X20BB27 separately
Spacing 4) 37.5+0.2 mm

1) The real-time clock is buffered for approx. 1000 hours by a gold foil capacitor. The gold foil capacitor is completely loaded after 18 continuous hours of operation.
2) This FRAM stores its contents ferroelectrically. Therefore, no buffer battery is needed.
3) Not buffered.
4) Spacing is based on the width of the Compact CPU base X20BB22 or X20BB27. An X20PS9500 or X20PS9502 supply module is also always required for the CPU.
