Módulo alimentación PS9500
  • Módulo alimentación PS9500

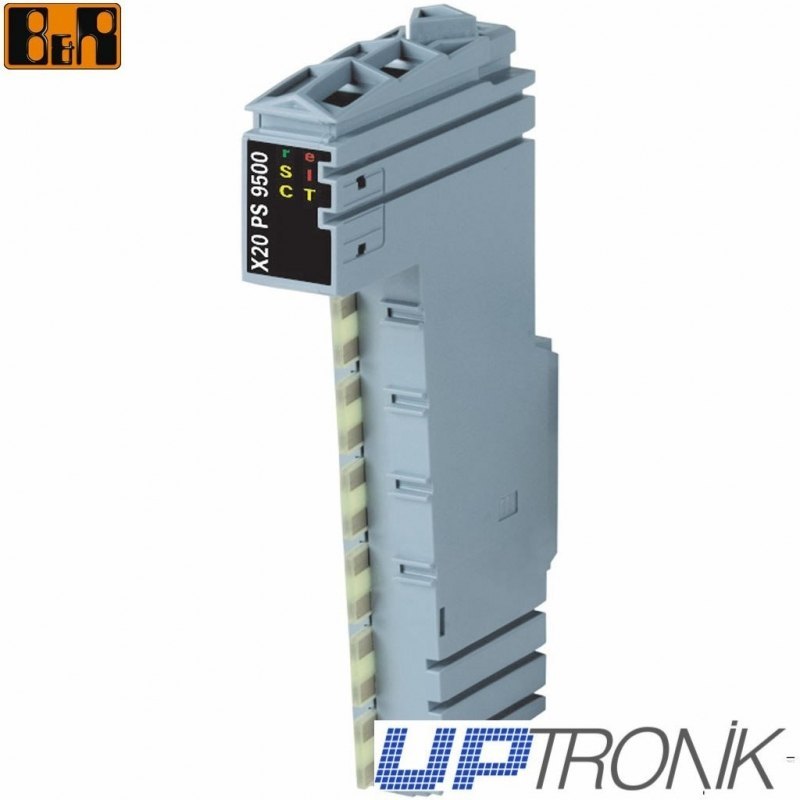

B&R X20-PS9500 (X20PS9500)

Módulo de alimentación para entradas y salidas y CPU compacta.

Cantidad

  • Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente) Política de seguridad (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de envío (editar con el módulo Información de seguridad y confianza para el cliente) Política de envío (editar con el módulo Información de seguridad y confianza para el cliente)
  • Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente) Política de devolución (editar con el módulo Información de seguridad y confianza para el cliente)
Short description X20PS9500
Power supply module 24 VDC supply module for Compact or Fieldbus CPU, X2X Link bus supply and I/O
Interfaces 1x RS232, 1x CAN bus 1)
General information X20PS9500
B&R ID code $2018
Status indicators Overload, operating status, module status, RS232, CAN bus 2)
Diagnostics
Module run/error Yes, with status LED and software status
CAN bus data transfer 3) Yes, with status LED
RS232 data transfer Yes, with status LED
Overload Yes, with status LED and software status
Power consumption 4)
Bus 1.42 W
Internal I/O 0.6 W
Additional power dissipation caused by the actuators (resistive) [W] -
Electrical isolation
CPU/X2X Link feed - CPU/X2X Link supply Yes
I/O feed - I/O supply No
Certification types
CE Yes
c-UL-us Yes
GOST-R Yes
CPU / X2X Link supply input X20PS9500
Input voltage 24 VDC -15% / +20%
Input current Max. 0.7 A
Fuse Integrated, cannot be replaced
Reverse polarity protection Yes
CPU / X2X Link supply output X20PS9500
Rated output power 7.0 W
Parallel operation Yes 5)
Redundant operation Yes
Overload behavior Short circuit / temporary overload protection
Input I/O supply X20PS9500
Input voltage 24 VDC -15% / +20%
Fuse Erforderliche Vorsicherung max. T 10 A
Reverse polarity protection No
Output I/O supply X20PS9500
Rated output voltage 24 VDC
Behavior if a short circuit occurs Erforderliche Vorsicherung
Permitted contact load 10.0 A
Interfaces X20PS9500
Interface IF1
Type RS232
Design Contact via 12-pin terminal block TB12
Transfer rate Max. 115.2 kbit/s
Interface IF3 6)
Type CAN
Design Contact via 12-pin terminal block TB12
Transfer rate Max. 1 Mbit/s
Operating conditions X20PS9500
Mounting orientation
Horizontal Yes
Vertical Yes
Installation at altitudes above sea level
0 to 2000 m No limitations
>2000 m Reduction of ambient temperature by 0.5°C per 100 m
EN 60529 protection IP20
Environmental conditions X20PS9500
Temperature
Operation
Horizontal installation -25°C to +60°C
Vertical installation -25°C to +50°C
Derating When operated at temperatures above 55°C, the rated output current for the CPU / X2X Link supply is reduced to 5 W.
Storage -40°C to +85°C
Transport -40°C to +85°C
Relative humidity
Operation 5 to 95%, non-condensing
Storage 5 to 95%, non-condensing
Transport 5 to 95%, non-condensing
Mechanical characteristics X20PS9500
Note Order 1x X20TB12 terminal block separately
Order Compact CPU base 1x X20BB22 or X20BB27 separately
Order Fieldbus CPU base 1x X20BB3x/4x separately
Spacing 12.5+0.2 mm

1) CAN bus only together with the X20BB27 X20BB37 or X20BB47 bus module.
2) CAN bus only together with the X20BB27 X20BB37 or X20BB47 bus module.
3) CAN bus only together with the X20BB27 X20BB37 or X20BB47 bus module.
4) The values specified are maximum values. The calculation is also available for download as a data sheet with the other module documentation on the B&R homepage.
5) In parallel operation, only 75% of the rated power can be assumed. Please ensure that all parallel operating power supplies are switched on and off simultaneously.
6) CAN bus only together with the X20BB27 X20BB37 or X20BB47 bus module.
